Rachio Soil Moisture Sensor Problems: Diagnosis & Quick Fixes

The Diagnostic Triage: Why Your Sensor is Failing

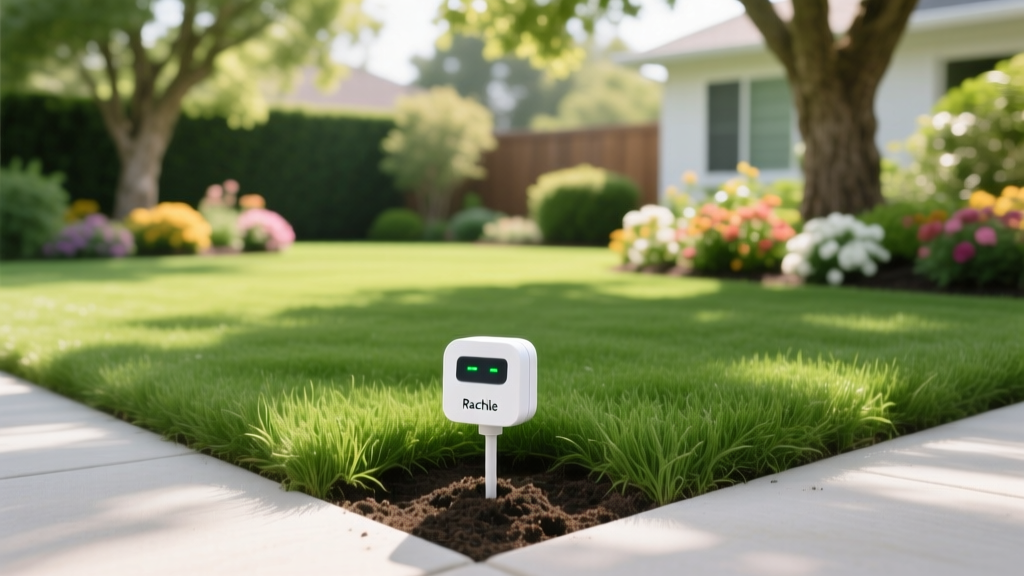

The Rachio soil moisture sensor (retailing around $55) is a wired probe designed to override your Rachio 3 or 3e smart controller's schedule when the soil reaches field capacity. According to the EPA WaterSense program, integrating soil moisture data with smart controllers can reduce outdoor water use by up to 50%. However, when the sensor malfunctions, it creates a binary failure: you either drown your garden roots in soggy soil or bake them during a heatwave because the system falsely believes the ground is wet.

Diagnosing the Rachio soil moisture sensor requires isolating the failure into one of three categories: physical placement errors, wiring faults, or app calibration mismatches. Before grabbing a shovel to dig up your garden beds, run through this diagnostic triage to identify the exact point of failure.

Symptom 1: System Overwaters (Sensor Reads 'Dry' in Soggy Soil)

If your garden beds are waterlogged but the Rachio app shows the sensor as 'Dry' and continues to trigger watering schedules, the controller is reading high electrical resistance. This happens when the circuit is compromised or the probe is in the wrong soil matrix.

• Cause A: Sandy Soil Pocket. The sensor probe was buried in a localized pocket of sand or gravel. Sand drains rapidly and creates air gaps around the probe, spiking resistance. Fix: Relocate the probe to a representative loam area, ensuring you pack native soil tightly around the cylinder to eliminate air pockets.
• Cause B: Corroded Terminal Connections. Oxidation at the Rachio controller's terminal block increases resistance, tricking the system into thinking the soil is dry. Fix: Disconnect the wires, strip back 1/4 inch of fresh copper, apply a dab of dielectric grease to the terminal screws, and re-tighten.
• Cause C: Shallow Burial Depth. Surface soil dries out within hours of a sunny afternoon. If the probe is only 2 inches deep, it will trigger watering even if the root zone is saturated. Fix: Bury the probe at least 6 to 8 inches deep for turfgrass, and 12 to 18 inches deep for deep-rooted shrubs and perennials.

Symptom 2: System Underwaters (Sensor Stuck on 'Wet')

When your plants show drought stress (wilting, curling leaves, or dry topsoil) but the Rachio app insists the sensor is 'Wet' and skips scheduled cycles, the probe is trapped in a localized moisture pocket.

The 'Drip Line' Placement Rule

The most common cause of false 'Wet' readings is placing the sensor directly under a drip emitter or in a topographical depression where surface runoff pools. According to research from the University of Minnesota Extension, sensors must be placed in the active root zone but slightly offset from direct water application points to measure actual soil retention, not just standing water.

The Fix: Move the sensor to the 'drip line' edge—the outer perimeter of the plant's canopy where feeder roots actively pull moisture from the soil. This provides an accurate average of the zone's moisture depletion rate rather than a localized flood reading.

Symptom 3: Rachio App Shows 'Sensor Not Connected'

If the Rachio app's moisture graph is flatlined and the device settings report no sensor detected, you have an open circuit. This is almost always a physical wiring error or a severed cable.

Wire Gauge Rules for Long Runs: The Rachio sensor operates on a low-voltage resistance circuit. If your garden bed is far from the garage-mounted controller, voltage drop will cause connection failures. Use 18 AWG multi-strand irrigation wire for runs under 50 feet. For runs between 50 and 100 feet, upgrade to 16 AWG. For anything over 100 feet, you must use 14 AWG wire to maintain signal integrity.

Calibration Matrix: Tuning App Settings to Your Soil

Hardware is only half the battle. If your sensor is wired correctly but your watering schedules still feel erratic, your Rachio app zone settings are mismatched to your soil's physical properties. The 'Allowed Depletion' setting dictates what percentage of moisture the soil can lose before the sensor overrides the schedule and demands water.

Pro Tip: If you have heavy clay soil, lower the Allowed Depletion to 35%. Clay retains water so tightly that roots cannot extract it once the soil drops below 65% capacity, meaning a 50% depletion setting will result in severe plant stress.

Advanced Diagnostics: Testing Wire Continuity

If you have verified the S1/SC terminal connections and the app still shows no sensor, do not dig up your entire garden to find a broken wire. Use a digital multimeter to test the circuit from the controller.

1. Power Down: Unplug the Rachio controller or turn off the breaker to prevent shorting the 24VAC transformer.
2. Disconnect: Remove the two sensor wires from the S1 and SC terminals.
3. Set Multimeter: Turn your digital multimeter to the Ohms (Ω) setting, specifically the 20k or 200k range.
4. Measure: Touch the multimeter probes to the bare copper ends of the buried sensor wires. A healthy, connected sensor buried in moist soil will typically read between 2,000 Ω and 15,000 Ω (2kΩ - 15kΩ), depending on exact moisture levels.
5. Diagnose: If the multimeter reads OL (Open Loop) or Infinite, the wire is severed underground (often by aeration, edging, or rodent damage). If it reads near 0 Ω, the two wires are touching somewhere along the run, creating a short circuit.

Expert Insight: When splicing a severed sensor wire underground, never use standard twist-on wire nuts. The soil environment will corrode them within a single season. Use resin-filled gel crimp connectors (like the 3M UR2) to create a completely waterproof seal that will survive decades of soil moisture and freeze-thaw cycles.
