Smart Flagstone Walkways Ideas: Solving Drainage, Weeds, and Settling
Flagstone offers an organic, timeless aesthetic that seamlessly integrates with natural landscapes. However, the gap between a stunning installation and a failed hardscape often comes down to subsurface engineering and joint management. When homeowners search for flagstone walkways ideas, they frequently focus on stone color and pattern, overlooking the structural mechanics required to withstand freeze-thaw cycles, hydrostatic pressure, and organic intrusion. This guide approaches flagstone design through a problem-diagnosis lens, providing actionable, engineering-backed ideas to solve the most common hardscape failures.
Diagnostic Matrix: Identifying Your Walkway Failure
Before implementing a new design or repair strategy, accurately diagnose the root cause of your current hardscape issues. Misdiagnosing frost heave as simple soil settling will result in repeated failures.
| Symptom | Probable Root Cause | Diagnostic Test | Targeted Solution |
|---|---|---|---|
| Stones tilting or sinking unevenly | Sub-base washout or organic soil decomposition | Probe joints with a screwdriver; if it sinks easily, base is compromised. | Excavate and install open-graded aggregate base. |
| Stones lifting uniformly in winter | Frost heave due to moisture trapped in fine-grained base | Check if heave aligns with winter freezing; inspect base for clay/silt. | Switch to ASTM No. 57 stone base with geotextile separation. |
| Persistent weeds and moss in joints | Organic debris accumulation and sand washout | Inspect joint depth; if sand is missing down to the base, washout occurred. | Apply permeable epoxy resin or polymeric jointing dust. |
| Surface ponding after rain | Negative slope or impermeable jointing blocking drainage | Place a level on the stone; verify slope is less than 1/4 inch per foot. | Integrate French drains and re-grade base to 2% minimum slope. |
Idea 1: Open-Graded Base Systems to Eliminate Frost Heave
The most catastrophic failure in flagstone walkways is frost heave, which occurs when water trapped in the sub-base freezes and expands, pushing the stones upward. Traditional installations often use a dense-graded base (like crushed limestone with fine dust) that holds moisture. A modern, highly effective flagstone walkway idea for cold climates is the open-graded base system.
Execution Specifications
- Excavation: Remove all topsoil and organic matter to a depth of 8 to 12 inches in freeze-thaw zones.
- Separation: Lay a non-woven geotextile fabric (such as Mirafi 500X) to prevent the subgrade soil from migrating up into the aggregate.
- Aggregate Selection: Use ASTM No. 57 stone (3/4-inch clean, angular crushed stone without fines). Because it lacks fine particles, water drains straight through it rather than pooling and freezing.
- Setting Bed: Instead of a traditional sand bed, use a 1-inch layer of coarse, sharp concrete sand or a specialized open-graded bedding sand to maintain permeability.
According to the Natural Stone Institute, ensuring proper subsurface drainage is the single most critical factor in extending the lifespan of natural stone installations, particularly in regions with severe winter temperature fluctuations.
Idea 2: Permeable Epoxy Joints for Weed Control and Drainage
Weed intrusion and joint washout plague traditional flagstone paths filled with standard masonry sand. As sand washes away, the stones lose lateral support, leading to shifting. While polymeric sand is a common upgrade, it can crack under slight movement and trap water if not installed perfectly. A superior design idea is utilizing permeable epoxy resin jointing compounds (such as Surebond SB-1300 or Alliance Gator Epoxy).
Why Epoxy Resins Outperform Polymeric Sand
Epoxy resins bind the aggregate in the joints together while maintaining microscopic pores that allow water to permeate. This prevents the hydrostatic pressure buildup that typically blows out polymeric sand joints. Furthermore, the hardened resin creates an environment with a pH level and physical density that weed seeds and moss spores cannot penetrate.
Pro Tip for Epoxy Application: Epoxy jointing compounds require the stone to be completely dry and the ambient temperature to be above 50°F (10°C) for 24 hours. Unlike polymeric sand, you do not mist epoxy with water to activate it. Sweeping the resin-coated aggregate into 1/2-inch to 2-inch joints and compacting it with a rubber mallet ensures a lock-tight, weed-proof seal.
Idea 3: Thermal-Treated Stone and French Drain Integration
Surface ponding not only kills surrounding turf but also creates severe slip hazards. Natural cleft flagstone, while beautiful, can become incredibly slick when wet due to algae growth and water film. If your walkway suffers from poor drainage and slipperiness, combine thermal-treated flagstone with hidden trench drainage.
Solving the Slip and Ponding Crisis
- Specify Thermal-Treated Stone: Thermal treatment involves applying a high-temperature torch to the surface of the stone (commonly bluestone), which pops the silica crystals and creates a permanently textured, slip-resistant surface. This is vastly superior to chemical anti-slip coatings that wear off after one season.
- Establish a 2% Grade: The base must be graded to a minimum slope of 1/4 inch per foot (2%) away from structures. Use a laser level during the sub-base compaction phase to guarantee this pitch.

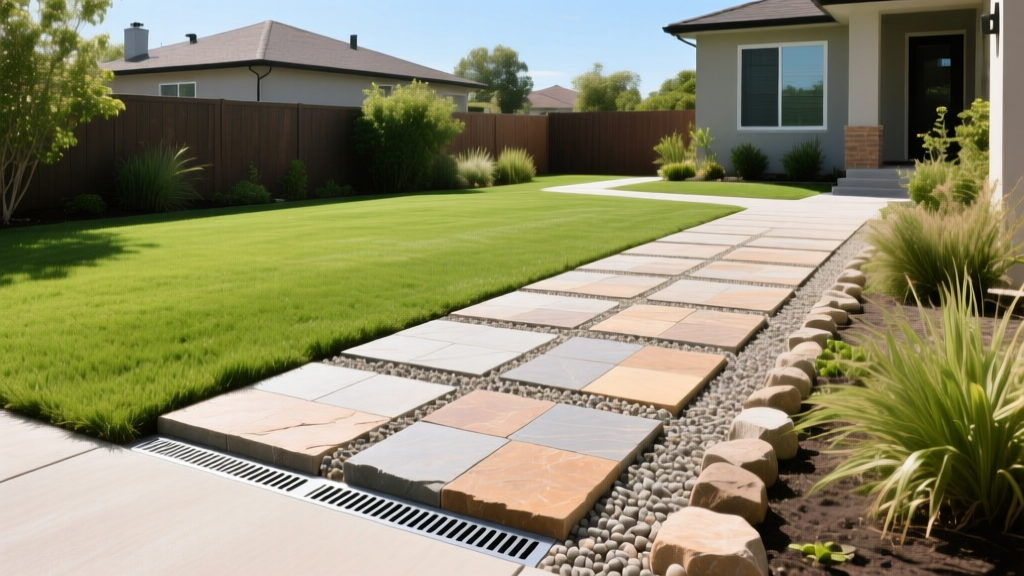

- Install a Linear French Drain: If the yard is entirely flat and re-grading is impossible, install a 4-inch perforated PVC pipe wrapped in filter fabric adjacent to the walkway's low edge. Backfill the trench with clean gravel to intercept lateral water flow before it reaches the walkway base.
Integrating permeable paving techniques and strategic drainage is heavily supported by environmental engineering guidelines. As noted by Penn State Extension, managing stormwater at the surface level through permeable joints and subsurface interception drastically reduces localized flooding and hardscape degradation.
2026 Cost Analysis: Targeted Repair vs. Full Rebuild
Understanding the financial implications of these solutions helps homeowners decide whether to patch a failing walkway or invest in a complete structural overhaul. Below are current average market rates for professional hardscape remediation.
| Intervention Type | Scope of Work | Estimated Cost (Per Sq. Ft.) | Longevity Expectancy |
|---|---|---|---|
| Joint Re-Sanding (Polymeric) | Pressure washing joints, applying new polymeric sand. | $3.50 - $5.00 | 3 - 5 Years |
| Epoxy Resin Jointing | Deep joint excavation, epoxy aggregate installation. | $7.00 - $11.00 | 10 - 15 Years |
| Localized Base Repair | Removing sunken stones, replacing base material, re-laying. | $15.00 - $22.00 | 15+ Years |
| Full Rebuild (Open-Graded) | Total excavation, geotextile, ASTM No. 57 base, new stone. | $35.00 - $55.00+ | 25+ Years |
Preventative Maintenance Framework
Even the most engineered flagstone walkways require specific maintenance to preserve joint integrity and stone porosity. Avoid generic advice; follow this targeted seasonal framework:
- Spring (Post-Thaw): Inspect joints for micro-cracking. If using polymeric sand, apply a liquid joint stabilizer sealer to re-bind loose particles before spring rains. Do not use high-pressure washers (keep PSI under 1,200) to avoid blasting out the jointing material.
- Summer (Organic Control): Apply a potassium salts of fatty acids herbicide (soap-based) to any emerging moss. Avoid sodium-based de-icers or harsh chemical weed killers, which can alter the soil pH and degrade the stone's natural mineral composition over time.
- Autumn (Debris Management): Clear fallen leaves immediately. Decaying organic matter releases tannic acid, which causes deep, dark staining on porous stones like sandstone and limestone. If staining occurs, use a specialized natural stone poultice powder to draw the tannins out of the stone matrix.
- Winter (Ice Mitigation): Never use rock salt (sodium chloride) or calcium chloride on flagstone. These salts cause spalling (flaking) by crystallizing inside the stone's pores. Use magnesium acetate or clean sand for traction, which are chemically inert to natural stone.
By shifting your focus from superficial aesthetics to structural diagnostics, you can implement flagstone walkways ideas that are not only visually striking but engineered to endure decades of environmental stress.
