Planning Metal Fence Designs: Step-by-Step Layout and Material Guide

Transitioning from traditional wood to architectural metal fencing fundamentally changes the structural and aesthetic dynamics of a landscape. Modern metal fence designs offer superior longevity, minimal maintenance, and clean sightlines, but they require precise planning regarding material grades, wind loads, and footing specifications. This guide provides the technical frameworks and step-by-step layout procedures required to execute a professional-grade metal fence installation in 2026.

Decoding Metal Materials: Aluminum vs. Steel vs. Corten

Selecting the right alloy dictates the fence's lifespan, structural integrity, and maintenance cycle. Residential metal fencing primarily relies on three material categories, each with distinct mechanical properties and cost profiles.

6061-T6 Aluminum is the premier choice for coastal or high-humidity environments. Unlike steel, it does not contain iron and therefore cannot rust. It relies on a naturally occurring aluminum oxide layer for protection, usually augmented by a TGIC polyester powder coat.

A606-4 Corten Steel (weathering steel) is favored for contemporary landscape designs. According to ArchDaily's material archives, Corten forms a dense, stable rust patina when exposed to wet-dry cycles, which seals the core metal from further atmospheric corrosion.

Galvanized Tubular Steel offers high tensile strength for security applications but requires a robust zinc undercoat and UV-resistant topcoat to prevent white rust and eventual red rust at the weld seams.

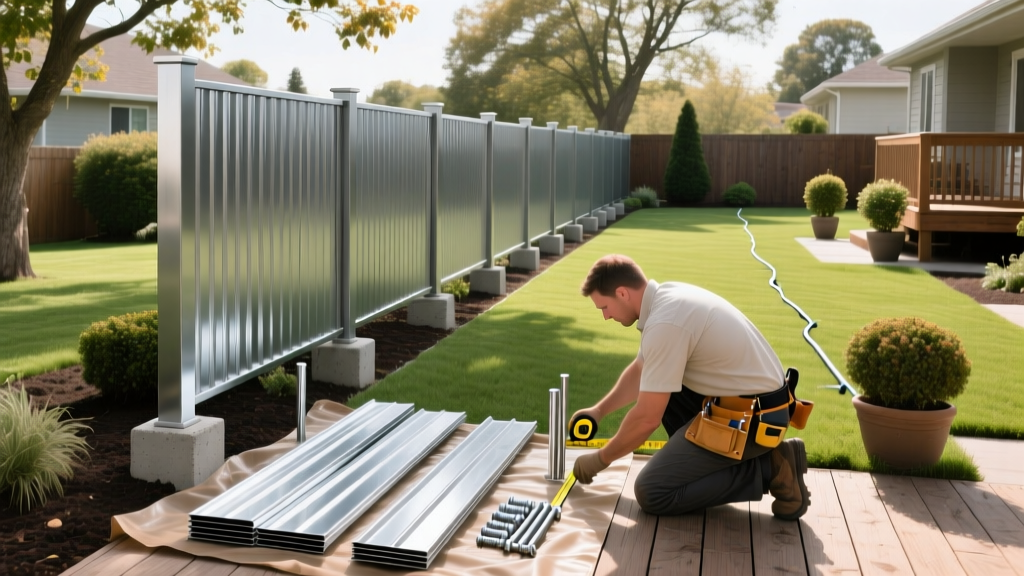

Step-by-Step Site Layout and Measurement

Metal fence panels are manufactured to exact tolerances. Unlike wood, which can be easily cut and modified on-site, metal panels require precise post-center measurements. A 96-inch panel requires exactly 96 inches of clear space between the inside faces of the posts.

1. Locate Property Iron Pins: Use a metal detector to find survey pins. Do not rely on existing sidewalks or neighbor fences as boundary indicators.
2. Establish the Grade Line: Run a mason's string line from corner to corner. Use a transit level or laser level to map the slope over the entire run.
3. Calculate Post Centers: Mark post locations using a 100-foot steel tape measure. Account for the physical width of the posts (e.g., a 2.5-inch square post reduces the clear opening by 2.5 inches per bay).
4. Map Gate Clearances: Add 0.5 inches to the nominal gate width for hinge and latch hardware clearance. A 48-inch gate requires a 48.5-inch rough opening between posts.

Privacy, Security, and Wind Load Considerations

The physical configuration of your metal fence designs directly impacts structural wind loads and functional privacy. Solid metal fences act as massive wind sails, requiring significantly deeper footings and heavier post gauges.

• Horizontal Slat Designs (Privacy): Alternating 2-inch and 4-inch horizontal aluminum slats with a 0.5-inch gap blocks approximately 85% of the sightline while allowing wind to pass through. This reduces lateral wind load by up to 40% compared to a solid corrugated steel panel.
• Corrugated Corten Panels (Privacy): Solid 14-gauge corrugated panels provide 100% privacy and high security. For a 6-foot tall solid panel in a 110-mph wind zone, posts must be 3-inch square steel with a minimum 0.188-inch wall thickness, set in 36-inch deep concrete footings.
• Picket and Spear-Point (Security): For tubular steel security fences, adhere to American Fence Association guidelines and ASTM F2049 standards, which mandate that picket spacing must not exceed 4 inches to prevent child head entrapment.

Post Setting and Footing Specifications

The most common point of failure in metal fencing is not the panel, but the post footing. Metal posts transmit high torsional and lateral loads to the base. Follow these structural specifications to prevent frost heave and leaning:

The 1/3 Rule and Frost Lines

Post holes must be dug to a depth equal to 1/3 the above-ground height of the fence, plus 6 inches below the local frost line. Consult the International Code Council (ICC) regional maps to determine your exact frost depth. In northern climates, this often means digging 42 to 48 inches deep for a 6-foot fence.

The Concrete Pour Sequence

1. Gravel Base: Drop 4 inches of 3/4-inch crushed angular gravel into the bottom of the hole. This prevents water from pooling under the post and causing bottom-up corrosion.
2. Post Bracing: Set the metal post and brace it perfectly plumb using two 90-degree magnetic post levels and 2x4 wooden braces staked into the ground.
3. Concrete Mix: Use a minimum 4000 PSI concrete mix. Avoid fast-setting fence post mixes for structural metal gates, as they lack the long-term compressive strength of standard aggregate concrete.
4. The Crown Slope: As you finish the pour, trowel the top of the concrete into a dome shape, sloping away from the post at a rate of 1/4 inch per foot. This sheds water away from the metal-concrete interface, which is the most vulnerable spot for galvanic corrosion.

Maintenance and Corrosion Prevention

While metal fences are marketed as low-maintenance, specific alloys require targeted care to reach their maximum lifespan.

Corten Steel Runoff Management: During the initial 6-to-12-month patina development phase, Corten steel will bleed rust runoff. If this runoff contacts concrete patios or light-colored stone, it will cause permanent staining. Install a 6-inch wide French drain or gravel drip edge directly beneath the fence line to capture and disperse the tannin-rich water.

Aluminum Powder Coat Repair: If an aluminum fence is scratched down to the bare metal by landscaping equipment, it will not rust, but it will oxidize and pit. Clean the scratch with isopropyl alcohol, apply a self-etching primer, and top it with a color-matched cold-galvanizing compound or exterior polyurethane touch-up paint within 48 hours to maintain the aesthetic finish.

Frequently Asked Questions

Can I install metal fence panels on a concrete retaining wall?

Yes, but you cannot core-drill and set the posts directly into the concrete cap. You must use specialized base plates welded to the bottom of the metal posts, anchored into the concrete using 1/2-inch wedge anchors or epoxy-set threaded rods. The concrete cap must be at least 6 inches thick and reinforced with rebar to handle the lateral wind load transferred through the base plates.

How do I prevent galvanic corrosion where aluminum meets steel?

When dissimilar metals touch in the presence of an electrolyte (rainwater), galvanic corrosion rapidly destroys the less noble metal (aluminum). If your aluminum fence panels must connect to steel posts, you must use dielectric isolators—such as nylon or EPDM rubber grommets and washers—between every metal-to-metal contact point to break the electrical circuit.

What is the maximum width for a single metal gate?

For residential tubular aluminum or steel, a single-swing gate should not exceed 6 feet in width. Beyond 6 feet, the sheer weight of the metal and the leverage applied to the hinge posts will cause sagging and post deflection. For openings wider than 6 feet, utilize a double-swing gate or a cantilevered sliding gate system with a dedicated concrete footer track.
