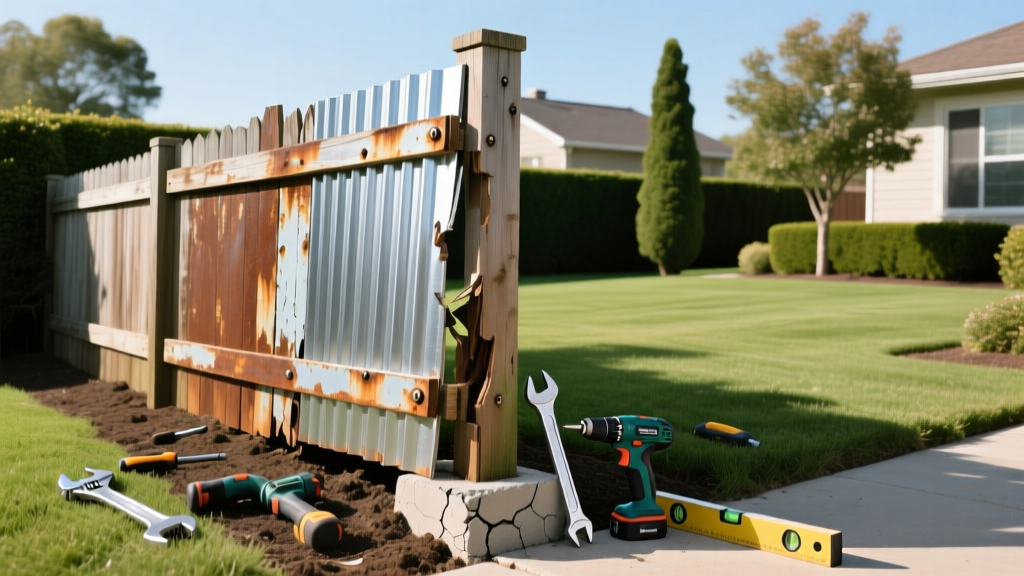

Repairing a Fence with Metal Panels: Rust, Heave, and Post Failures
The Diagnostic Matrix: Identifying Your Fence Failures
Installing a fence with metal panels paired with wood or masonry pillars delivers a striking modern aesthetic, but mixing materials introduces complex structural and chemical failure modes. Homeowners often misdiagnose surface rust as a simple coating failure when it is actually a symptom of galvanic corrosion or trapped moisture. Before purchasing replacement materials, run your fence through this diagnostic matrix to pinpoint the exact root cause of the deterioration.
| Visible Symptom | Probable Root Cause | Diagnostic Field Test |
|---|---|---|
| White powdery residue or rapid pitting at fastener points | Galvanic corrosion (dissimilar metals or reactive treated lumber) | Scrape the residue; if it flakes and the underlying metal is pitted, check if standard steel or aluminum screws were used with ACQ-treated wood. |
| Panels rattling, bowing inward, or popping screws | Thermal expansion mismatch and rigid mounting | Measure the gap between the panel edge and the post. If it is less than 1/4 inch on a cold morning, the panel lacks a slip joint for summer expansion. |
| Post leaning >5 degrees or concrete footing cracked | Frost heave or inadequate wind-load footing depth | Probe the soil line with a steel rebar. If the concrete footer is less than 36 inches deep (in northern climates) or lacks a bell-bottom, heave is the culprit. |
| Wood posts rotting precisely where the metal rail brackets attach | Capillary action trapping water against the wood grain | Insert a moisture meter probe into the wood directly behind the metal bracket. Readings above 20% confirm trapped moisture and impending structural rot. |
Galvanic Corrosion: When Metal Meets Treated Lumber
The most catastrophic failure in a fence with metal components occurs when aluminum or uncoated steel fasteners are driven into modern pressure-treated lumber. According to research from the USDA Forest Products Laboratory, wood preservatives like Alkaline Copper Quaternary (ACQ) and Micronized Copper Azole (MCA) rely on high copper concentrations to deter rot. When moisture bridges the gap between this copper-rich wood and a standard steel or aluminum screw, it creates a galvanic cell. The less noble metal (your fastener) sacrifices itself, corroding rapidly and losing all shear strength within a single season.
⚠️ CRITICAL WARNING: Never use standard zinc-plated or hot-dipped galvanized screws to attach a fence with metal panels to ACQ-treated wood. The zinc coating will degrade within 2 to 3 years, leading to panel detachment during high-wind events.
The 316 Stainless Steel and Flashing Protocol
To halt galvanic corrosion, you must break the electrical circuit between the wood and the metal. First, replace all compromised fasteners with 316-grade marine stainless steel structural screws (such as the FastenMaster HeadLok or GRK RSS lines). The 316 alloy contains molybdenum, which provides superior resistance to the chloride and copper ions present in treated lumber. Second, apply a peel-and-stick bituminous flashing tape (like Vycor or Protecto Wrap) to the face of the wood post before mounting the metal brackets. This physical barrier prevents moisture from completing the galvanic cell.
Thermal Expansion and Panel Warping
Metal expands and contracts at a significantly higher rate than wood or masonry. Corrugated steel panels, for example, will expand approximately 1 inch per 100 feet of length for every 100°F temperature swing. If a fence with metal panels is screwed tightly against the posts with no room for lateral movement, the summer heat will cause the panels to buckle, warp, and tear through the screw heads.
The Slip Joint Solution: When rehabilitating warped panels, remove the fasteners on one side of the panel. Elongate the screw holes in the metal using a metal file or a drill with a step bit, creating a 1/2-inch horizontal slot. Re-secure the panel using a stainless steel screw with a neoprene washer, driving it only to "snug-tight" rather than fully torquing it. This allows the metal to slide laterally across the post face as temperatures fluctuate, eliminating buckling and fastener fatigue.
Structural Heave and Wind Load Failures
A solid fence with metal panels acts as a massive wind sail. A 6-foot-tall solid corrugated steel panel can experience over 150 pounds of lateral wind load per linear foot during a 60 mph gust. If your posts are leaning, the issue is rarely the wood snapping; it is almost always the concrete footing failing to anchor against frost heave or lateral shear.
The 36-Inch Bell-Bottom Footing Standard
In regions with a freezing index, footings must extend below the frost line (typically 36 to 48 inches). Furthermore, a straight cylindrical concrete pour will easily be pushed upward by the friction of freezing soil. The solution is a bell-bottom footing: dig the base of your post hole 4 inches wider than the top. When poured, this creates a subterranean anchor that resists upward frost heave. For existing leaning posts where excavation is impossible, utilize heavy-duty steel splints. The Simpson Strong-Tie post bases and E-Z Mender lines allow you to sister a new steel or wood stake alongside the failing post, driving it deep into the soil and bolting it to the existing structure to restore plumb alignment without full extraction.
Step-by-Step Panel and Post Rehabilitation
Follow this precise protocol to repair a failing section of your fence without triggering a full teardown:
- Isolate the Load: Use a temporary 2x4 brace screwed to the adjacent stable posts to hold the fence plumb and relieve wind load on the damaged section.
- Extract Seized Fasteners: If galvanic corrosion has welded the screws to the brackets, do not strip the heads. Use a reciprocating saw with a bi-metal blade to cut the screw shafts flush with the bracket.
- Prep the Substrate: Sand the wood post face to remove embedded copper-wood residue. Apply a heavy coat of copper naphthenate wood preservative to the bare wood and let it cure for 24 hours.
- Apply the Moisture Barrier: Adhere a 4-inch wide strip of butyl rubber flashing tape over the entire face of the post where the metal rail will sit.
- Re-secure with Slip Joints: Mount the metal brackets using 316 stainless steel structural screws. Ensure the horizontal rail slots are elongated to permit thermal expansion.
2026 Cost Expectations for Metal Fence Repairs
Budgeting for repairs requires an understanding of current material and labor rates. Here is what homeowners should expect to pay for professional rehabilitation of a fence with metal and wood components:
- Fastener and Flashing Retrofit: $4 to $8 per linear foot (materials only). Upgrading to 316 stainless steel and butyl tape is a low-cost, high-ROI intervention.
- Post Splinting (E-Z Mender): $120 to $180 per post. Includes the steel mender, deep-drive stakes, and labor, avoiding the $400+ cost of full post extraction and concrete repouring.
- Panel Replacement (Corrugated Corten or Galvalume): $65 to $110 per linear foot. Prices have stabilized in 2026, but custom powder-coated aluminum panels remain at the premium end ($130+ per linear foot).
- Footing Remediation (Bell-Bottom Repour): $250 to $400 per post. Requires manual augering below the frost line and 80lb bags of high-PSI concrete mix.
Expert Troubleshooting FAQ
Can I use aluminum brackets on a fence with metal panels and cedar wood?
Yes. Untreated, naturally rot-resistant woods like Western Red Cedar or Redwood do not contain the corrosive copper chemicals found in ACQ pressure-treated pine. Aluminum brackets and standard hot-dipped galvanized fasteners are perfectly safe and will not trigger galvanic corrosion when paired with raw cedar.
Why is my corrugated metal fence making loud popping noises at night?
This is thermal contraction. As the ambient temperature drops rapidly after sunset, the metal panels shrink. If they are fastened too tightly without neoprene washers or elongated slip-joint holes, the metal binds against the screw shanks and suddenly slips, creating a loud popping or cracking sound. Backing the screws out a quarter-turn and adding neoprene washers will silence the fence.
How do I stop rust from bleeding down my wood posts from the metal panels?
If you are using raw Corten (weathering) steel panels for their intentional rusted patina, the rust runoff will permanently stain light-colored wood or masonry. Install a hidden PVC drip edge or a folded aluminum flashing lip at the bottom of the metal panel, angled slightly away from the post. This catches the tannin-rich rust water and directs it into the mulch bed rather than allowing it to cascade down the wood grain.
