Husqvarna 130L Straight Shaft String Trimmer 970514405: Expert Review
The Pro-Sumer Sweet Spot: Husqvarna 130L (970514405) Overview

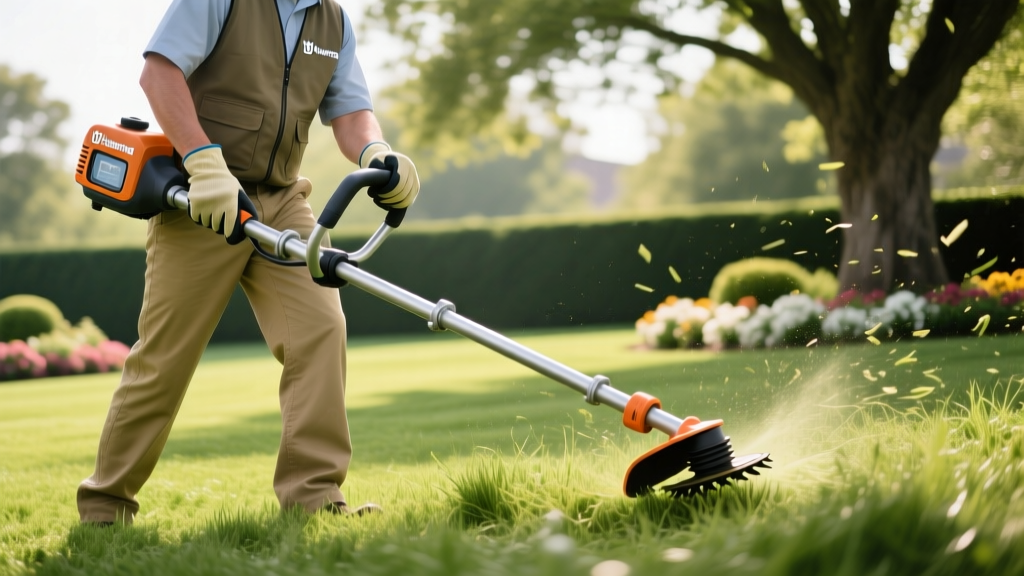

The Husqvarna 130L straight shaft string trimmer (OEM part number 970514405) occupies a critical middle ground in the 2026 outdoor power equipment market. It bridges the gap between big-box store disposables and $500 commercial-grade brushcutters. Priced typically between $249 and $279, this 28.2cc gas-powered trimmer is engineered for homeowners and estate managers maintaining 1/2 to 2 acres of mixed turf, thick weeds, and overgrown fence lines. Unlike entry-level curved-shaft models that rely on direct-drive flex cables, the 130L utilizes a solid steel drive shaft and a bevel gear case, translating its 1.1 HP output into high-torque cutting power at the head.
However, owning professional-tier equipment requires professional-tier maintenance. Below is a comprehensive teardown, setup, and maintenance protocol to ensure the 970514405 model operates at peak efficiency for its entire lifecycle.
Core Specifications & Real-World Performance
Understanding the exact engineering parameters of the 130L is essential for selecting the right cutting attachments and diagnosing performance issues. The table below contrasts the manufacturer specifications with real-world operational realities.
| Parameter | Manufacturer Spec | Real-World Application & Limits |
|---|---|---|
| Engine Displacement | 28.2 cc | Optimal for sustained RPMs; bogs down if forced through dense, wet saplings. |
| Power Output | 1.1 HP (0.8 kW) | Sufficient for 0.095" line; overloading with 0.130" line causes clutch slip. |
| Weight (Dry) | 11.5 lbs (5.2 kg) | Front-heavy balance mitigated by the included padded shoulder harness. |
| Cutting Width | 17 inches | Dictated by the T35 bump head guard; removing the guard risks severe injury. |
| Spindle Thread | M10x1.25 LH | Left-hand thread requires a locking pin in the gear case to remove the head. |
Unboxing and Split-Shaft Assembly Quirks
The 970514405 kit ships with a split shaft design for compact packaging. The internal coupling relies on a splined steel insert rather than a simple friction clamp. During initial assembly, you must align the white indicator arrows on both the upper and lower shaft sections.
⚠️ Critical Assembly Warning: If the internal splines are not fully seated before you tighten the 5mm hex coupling bolt, the shaft will wobble at 8,000 RPM. This harmonic vibration will rapidly shred the internal Teflon liners and snap the flexible drive cable within the first five hours of use. Always push the shafts together firmly, tap the base of the lower shaft on a rubber mat to seat the splines, and then torque the hex bolt until the locking tab clicks.
Fuel Chemistry & Carburetor Calibration
The 130L is powered by a 28.2cc two-stroke engine equipped with a Walbro WYL or Zama C1U carburetor (depending on the exact 2026 production batch). Two-stroke engines are highly sensitive to fuel degradation and improper lubrication.
The 50:1 Fuel Mix Protocol
Never use pre-mixed fuel that has been sitting on a retail shelf for more than 90 days. Ethanol attracts moisture, leading to phase separation that will destroy the carburetor's internal diaphragms. Mix your own fuel using fresh, ethanol-free 89-octane gasoline and a JASO FD or ISO-L-EGD certified synthetic 2-stroke oil.
- Ratio: 50:1 (2.56 fl oz of oil per 1 US Gallon of gas).
- Stabilizer: If using standard pump gas (up to 10% ethanol), add 1 oz of marine-grade fuel stabilizer per gallon.
- Shake Protocol: Agitate the fuel can vigorously for 10 seconds before every pour; oil settles at the bottom of the can over time.
Carburetor Tuning and EPA Limiter Caps
Out of the box, the carburetor is tuned for sea-level operation. The High (H) and Low (L) mixture screws are fitted with plastic EPA limiter caps to prevent users from leaning out the mixture and violating EPA nonroad engine emissions standards. If you operate the trimmer at elevations above 4,000 feet, the engine will run excessively rich, causing it to bog down and foul the spark plug. High-altitude tuning requires carefully prying off these limiter caps with a pick tool to adjust the H and L screws clockwise by 1/8th of a turn. Always refer to the official Husqvarna manuals database for the exact baseline screw settings before making adjustments.
50-Hour Maintenance Matrix
Routine maintenance is the difference between a trimmer that lasts 300 hours and one that seizes at hour 50. The following matrix outlines the mandatory service intervals for the 130L.
| Component | 10-Hour (Daily) Service | 50-Hour (Seasonal) Service |
|---|---|---|
| Air Filter (Foam) | Inspect for debris; tap out dust. | Wash in warm soapy water, dry, and apply 3-5 drops of filter oil. |
| Spark Plug (NGK BPMR7A) | N/A | Remove, check electrode gap (0.025 in / 0.65 mm), and clean carbon deposits. |
| Bevel Gear Case | Check for abnormal heat or play. | Purge old grease and repack with Lithium-Complex EP2 grease (leave 20% air space). |
| Clutch Drum | N/A | Inspect for deep scoring; clean clutch shoes with brake parts cleaner. |
Bevel Gear Greasing Technique
The gear case at the bottom of the shaft translates the rotational force of the drive cable into the cutting head. It requires a specific lithium-complex EP2 grease. A common mistake is overpacking the gear case. If you fill it 100% with grease, the friction from the bevel gears will heat the grease, causing it to expand and blow out the internal seals. Fill the cavity to approximately 80%, leaving room for thermal expansion.
Common Failure Modes & Troubleshooting
Even with meticulous maintenance, the 130L will exhibit specific wear patterns. Understanding these failure modes allows for rapid, on-site troubleshooting.
Symptom: Engine Bogs Down at Full Throttle
Cause: Clogged spark arrestor screen in the muffler.
Fix: Two-stroke engines run hot and oily, leading to carbon buildup on the exhaust screen. Every 50 hours, remove the muffler cover, extract the wire mesh screen, and scrub it with a brass wire brush. For severe carbon glazing, heat the screen with a propane torch until the carbon turns to ash, then brush it clean. Never run the trimmer without this screen, as it violates fire safety codes in dry regions.
Symptom: Cutting Head Spins at Idle
Cause: Centrifugal clutch spring fatigue or oil contamination on the clutch shoes.
Fix: The 130L's clutch is designed to engage at approximately 3,500 RPM. If the head spins while the engine is idling at 2,800 RPM, the return spring has stretched, or 2-stroke oil has leaked onto the clutch drum. Remove the clutch drum, wipe the inner surface with non-chlorinated brake cleaner, and replace the clutch spring (Husqvarna part #537281001).
Expert Line Selection Tip: The included T35 bump head is engineered for 0.095-inch or 0.105-inch diameter nylon line. While it is physically possible to wind 0.130-inch line onto the spool, doing so increases aerodynamic drag by nearly 40%. This overloads the 28.2cc engine, causing the centrifugal clutch to slip continuously, which generates enough heat to melt the clutch drum's needle bearing. Stick to 0.095-inch twisted line for the optimal balance of cutting aggression and engine longevity.
Final Verdict on the 970514405
The Husqvarna 130L straight shaft string trimmer (970514405) remains a highly capable, serviceable machine for 2026. Its use of standard, easily replaceable wear parts—like the NGK BPMR7A spark plug and standard M10x1.25 LH spindle—means you are not locked into proprietary, expensive consumables. By adhering strictly to the 50:1 fuel mix protocol, respecting the split-shaft assembly tolerances, and maintaining the bevel gear grease levels, this trimmer will easily outlast its big-box competitors by a factor of three.
